Stable Circular Female And Male Connector 250V AC Power Connector

Name: Stable Circular Female And Male Connector 250V AC Power Connector
Brand: SHANGWEN
Price: 1.10 USD

Buy cheap Stable Circular Female And Male Connector 250V AC Power Connector product

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW3FCB-N

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 10

Price : $1.10 - $2.00/pieces

Type : led display connector

Name : Circular Female And Male Connector

Application : Power

Gender : Male

Industrial electronics : accessories

Contact Now

Stable Ip44 Indoor Lockable Triple Core 250V AC Connector Female And Male Connector

Powercon Connector 3 Pin Male Panel Mount Female for Neutrik Power Cable, AC 250V 20A Plug Jack Adapter for Stage Light LED Screen Audio Equipment

Application range:

LED display, Audio equipment, street lighting, electrical equipment, automation machine, electric vehicle.

Products Description

Power connector series-male powercon(output port)

1. Electrical parameters

Contacts NO.	2+PE
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤5mΩ
Dielectric strength	4000V DC
Insulation resistance	＞1000MΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	2.5mm²(8mm - 12mm)
Wire stripping length	7-8mm
Type of teminals	Screw type clamping units solder termination

3. Material and environmental parameters

Shell	PA
Contacts	Cu alloy
Contact surface	Ag
Flame-retardant grade	UL94-V0
Protection grade	IP44
Temperature range	-30°C to +80°C

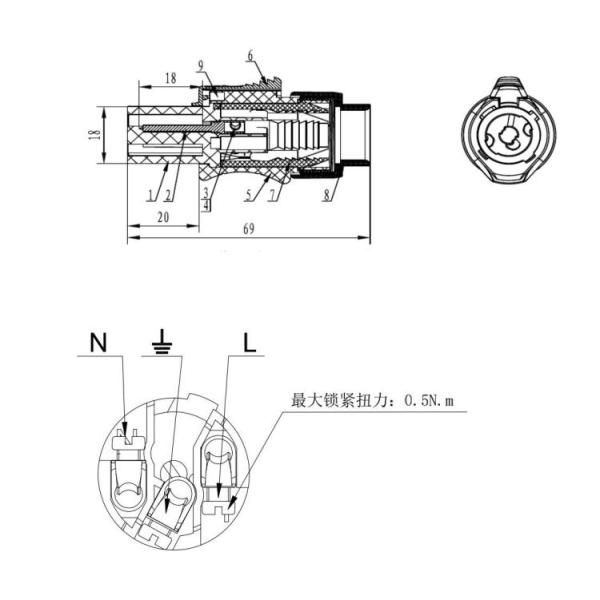

4.Size reference (unit /mm)

Stable Circular Female And Male Connector 250V AC Power Connector

5. Installation reference drawing

Application area

Company Information

Patent & Certification

Exhibition activities

Payment and logistics

FAQ

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

3. Do your products come with warranty?
A: Yes,we promise 1-3 year warranty according to different model.
